What Model A Engine is this?

D

daredevilcustoms

Junior Member
Bought this from a lady who was using it as yard art. I'm not familar with Model A engines (Model T guy). Can you help?


Attachments

  • 001.JPG
    65.4 KB · Views: 402
  • 002.JPG
    53.6 KB · Views: 338
  • 003.JPG
    65.7 KB · Views: 324
  • 004.JPG
    69.5 KB · Views: 307

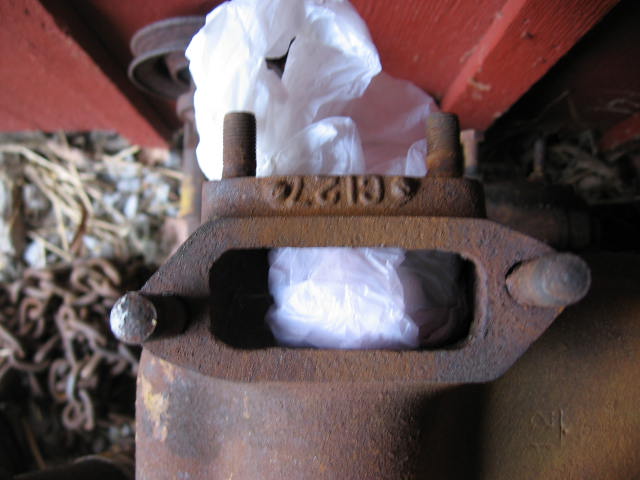

some additional phots, not a B engine. Serial # A4869984 and is a diamond block. I assume its' an industrial engine. What is the significance of the diamond blocks? Thanks


Attachments

  • 001.JPG
    77.7 KB · Views: 237
  • 002.JPG
    70.2 KB · Views: 235
The diamond blocks were made after stock production ceased. Some theories are that they have thicker castings, but this is disputed often. The usual difference is that diamond blocks were often used in industrial applications and often have hard valve seats.

Re: What is ment by a diamond block

How can you tell a diamond block from a standard "A" block? Is there a diamond cast into the block or something? A diamond in the serial number?

Someone said industrial engines serial numbers do not start with an "A". Is this true? I heard industrial engines have different valve springs.

Let me know.

Thanks

Re: What is ment by a diamond block

sturgis 39 said:
How can you tell a diamond block from a standard "A" block? Is there a diamond cast into the block or something? A diamond in the serial number?

Someone said industrial engines serial numbers do not start with an "A". Is this true? I heard industrial engines have different valve springs.

Let me know.

Thanks
Click to expand...

Diamond engines had a small diamond cast in the block near the cam gear side cover.

I don't know about the serial numbers on industrial engines.

Re: What is ment by a diamond block

Tom Wesenberg said:
Diamond engines had a small diamond cast in the block near the cam gear side cover.

I don't know about the serial numbers on industrial engines.
Click to expand...

Complete engine assemblies for stationary engine use were serial numbered. They included all the accessories including starters, generators, etc. Engines for use in service were unnumbered, so an engine could be either way depending on the intended use.

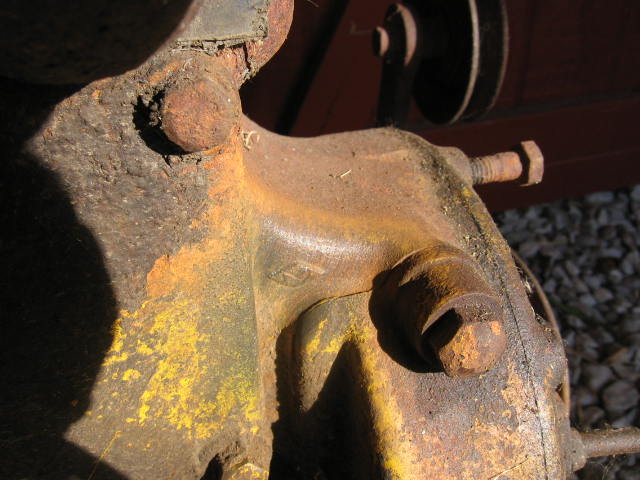

I have several heads identical to what is shown. They are Ford built heads cast after the A went out of production. Just in front of the water outlet you can see a date "tag" cast into the head. Gar Williams

Last edited:
Aerocraft said:
I have several heads identical to what is shown. They are Ford built heads cast after the A went out of production. Just in front of the water outlet you can see a date "tag" cast into the head. Gar Williams
Click to expand...


Gar, in the Model A Judging Standards, Copyright 1981, on page 1-1 at bottom Right, it says.

"Quote" Most cylinder heads had no Ford script and few, if any markings. Ford script heads are acceptable through mid 1928 only. After mid-1928, Model A cylinder heads had no numbers or letters on them. Other after market heads will appear identical to the factory original heads, except they may have raised bosses with numbers or letters. "End Quote"

Ford was real touchy about someone using the Ford name on after market parts. A good friend of mine who lived in Omaha, Mel Alexander also told me that those heads were Model A AR. So if that ford script is not Early AR, what do the Early AR's look like, as that head is the only Model A head style I have seen with Ford script. If I am mistaken, I would like to find out, I am going to keep digging in my Model A books, and see what I can find, give me some help Guys, see what you can find. thanks Gar, Herm.
