Mike/Nebraska
Senior Member
Does anyone know where to get jets for a Holley 94/? Speedway sells adjustable main jets but that's all.
Holley b94
- Thread starter Mike/Nebraska
- Start date
BRENT in 10-uh-C
Well-known member

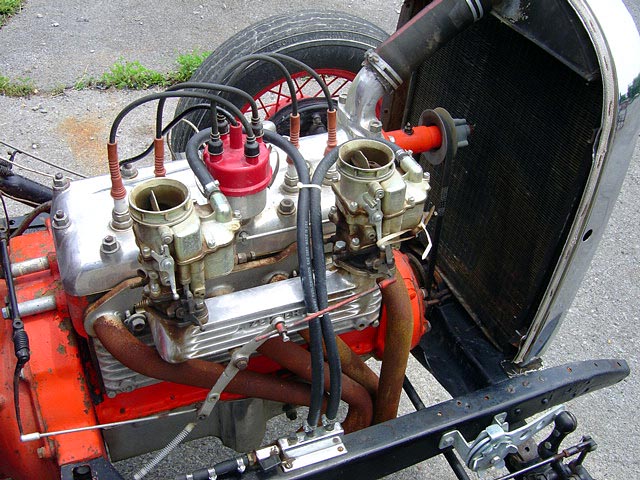

My experience with their adjustable jets is buy those & install them, -and then get a handful of different power valves to tune even further. When I was running dual 94s on the street and the track, those with the adjustable jets were the most tunable and best running carburetors out of the 97, 94,and 81 carbs.
.
.
Attachments
Herb Concord Ca
Well-known member
Brent, I notice in the pictures, you have friction shocks in the front. What kind of shocks did you use in the rear?
Thanks,
Herb
Thanks,
Herb
BRENT in 10-uh-C
Well-known member
Ooooo,
...what I used -vs. what I should have used is two huge differences. Back then, I tried various types but as I recall on the rear in those pix I was using front shocks off of a 1970's ½-ton Chevrolet pick-up which were installed at about a 45° angle. I used those because I was trying to use them to control body roll.
Those friction shocks up front were about the same as having nothing.
Disclaimer: Knowing what I/we know today about race shocks, and if we had a shock dyno and a spring smasher in-house (like now) where we could have tuned with compression & rebound valving, I likely could have made all of my Model-A racers much quicker. Again, back then I was pretty naïve about the concept needing to keep all 4 tires on the ground at all times around the track.
The car below kinda took the place of my Model-A race cars.
.
Attachments
Herb Concord Ca
Well-known member
Thanks Brent, not what I was expecting. I guess your experience with the friction shocks leads you to not recommending them.
BRENT in 10-uh-C
Well-known member
Well depends I guess. I am building a 1912 Model-T Speedster for a customer that we are fabricating a set of Hartford replica friction shocks. His car will be a street-driven car that has quite a lot of era goodies. I doubt it will never be driven on a race track in 'competition', therefore the friction shocks (-which were the best at the time) will suffice. In the case of when I was driving Big Cars, Speedsters, and Track Roadsters with AARA and DAARA, even though it was called 'exhibition racing', the term exhibition had different meanings for different competitors within the same race!!
Herb Concord Ca
Well-known member
Brent, thanks for the added info.
Mike/Nebraska
Senior Member
Brent, What engine mods did you make to run two 94s on your banger. I keep hearing that it's too much carb for a Model A. My motor is .060. over, "B" cam, counter balanced crank and lightened flywheel and V-8 clutch. I'm waiting to get either a Winfield 7.1 head or something similar. This motor goes in a similar speedster as yours shown.
BRENT in 10-uh-C
Well-known member
The engine in both cars is a G28T engine with 1.750 intakes, a cam that Pete Samuelson ground and sent as a gift (-well, it was exchanged for something however we will leave that right there even though the statute of limitations has likely expired!!
), and a Dan Iandola head that CC-ed at about 8½:1 compression. Maybe Pete can share the specs?? The rear axle had 4:33 R&P, and no idea on what the height of the tires were.I ran several different ignition systems during that time, and all were similar except the mags. In one of pics, you will see a Model-A distributor that had a Pertronix Ignitor set-up and whatever coil they recommended. Likely the best was with the Mallory Unilite distributor that had a Blaster Coil and a MSD 6AL box. The worst was a WICO mag, and I also had a Scintilla Vertex mag that had great crowd appeal but I wasn't a fan. The bottom line is if you can have good hot spark where you can 'light' the fuel mixture cleanly, then you can run a fat mixture successfully. If you can hide an MSD box, then you can generally run less timing and still make good power. And, ...your bearings will love you for that!!
