Fuel sending unit / fuel gauge on 1956 Thunderbird

zuburg

zuburg

Senior Member
I’ve tried reviewing many of the forum entries on this subject and decided to just describe my situation. I’m afraid I don’t know some things since I don’t know what was done by previous owners.

About 2 years ago, I decided to try and fix the problem I had with running out of fuel when the gauge showed nearly 1/2 full.

I could tell the fuel tank had been replaced because it looked practically new. I assumed the dash gauge is original. I didn’t know if it had a new sending unit so I pulled it and it looked quite old so I replaced it with one I got from Concours Parts and Accessories. After installing the new part I still had the issue. I finally gave up and just tried to remember how much gas I should have.

Now I want to try and fix it. I found instructions on how to test the gauge with an ohm meter. Based on the readings I’m guessing the new sending unit is not the right one based on my reviews of the Forum.

Here’s my test:
Ohm meter set to 200
Positive lead attached to V[ohm]mA
Negative lead attached to Common
Positive lead attached to center terminal on sending unit
Negative lead attached to mounting plate on sending unit
Ohm meter readings:
1 At Empty
160 at approximately 1/2
43 at full

I can’t make any sense of this. Any ideas? Would a different sending unit (if even available) correct the problem? I thought parts from Concourse would be the correct part for the car you selected (1956 Thunderbird).

PS. I currently have 2 1/2” of gas in the tank. Any idea what the gauge should read?

Thanks

Last edited:
I didn’t know if it had a new sending unit so I pulled it and it looked quite old so I replaced it with one I got from Concours Parts and Accessories.

After installing the new part I still had the issue.
Click to expand...

They may be sourcing the usual aftermarket junk as NOS is most likely gone and there is not enough demand to produce FORD AUTHORIZED service replacements.

I did find a sending unit at Ecklers that is described as “ Fuel Sending Unit for Factory Gauges Only” but it says it is for both 1955 and 1956. Will thus sending unit work for both years?

https://www.ecklers.com/thunderbird-...nly-556fs.html
Click to expand...


I don't see how, as there are two different parts used on two different applications (1955 6V) (1956 12V KING SEELEY).

I would get them on the horn first thing tomorrow morning and ask what their song and dance is.

There are services which can restore most sending units.

SEE ATTACHED FORD PARTS LISTING -​


Attachments

  • GAUGE ASSY - FUEL - TANK (92475) - 1949-1959 FORD CAR MPC TXT.jpg
    GAUGE ASSY - FUEL - TANK (92475) - 1949-1959 FORD CAR MPC TXT.jpg
    21.6 KB · Views: 12
That’s what I thought based on my research and why I asked the question when I saw they said was for both years.


Gas Tank Sending Unit - 1956 Ford Truck, 1956 Ford Car

Features:

• 12 Volt
• Improved Technology for Worry Free Operation
• Gold Cadmium Plated for Corrosion Resistance
• Fuel Resistant Foam Floats that Never Leak
• Includes Cork Gasket, Float and Installation Hardware

Ohm Measurement:

Full: 75-80 ohms
Empty: 865-880 ohms

Note: For use on 1956 vehicles only with original dash gauges.

Our Dennis Carpenter fuel tank sending units embrace modern technology, but are designed to fit and function with the vehicles original gauge. 1956 was the first year that Ford moved to a 12volt electrical system and was also the only year that Ford used this style 12volt sender and gauge in their vehicles.

The sender and gauge both used a heating coil inside them and the the sender was also designed with a bimetallic arm inside to control the voltage sent to the dash gauge, allowing the needle to show the level of fuel in the tank.
Click to expand...

They should state (IMO) in the ad as to whether, FORD AUTHORIZED REPRO, NOS or SLOPPY-COPY MIGHT FIT.

The original sending unit probably has oxidation, corrosion on the points causing bad readings and can be cleaned if you are very careful with 1000 wet and dry sand paper. Pop the cap off the sender and carefully slide a small strip of sand paper between the points and pull it back and forth which should clean the points. Careful not to break the thin wire wrapped around the points arm. I would spray some electric contact cleaner on the points and reassemble. If you’re lucky it might work. I had the same issue with my sending unit and it cleared it up and works ok now. If you break the wire the unit will be toast.

Since the gauge registers but the reading is inaccurate, have you considered that the wire arm on which the float is mounted may simply need to be bent to where a correct reading is shown? I have used the following procedure on two of my cars: Pull the sender out of the tank including the brass wire and the float. Make sure that the float does not have a leak with fuel inside the float. Leave the hot wire attached to the sender. Working within the trunk, attach a ground wire from the car body to one of the mounting screw holes in the sender. Turn on the ignition so that the dash gauges are energized. Have an assistant watch the gauge reading as you move the float wire from one end of its travel to the other. If the gauge works correctly, then the sender is functioning properly. If the sender is indeed working, then fully drain the tank. The fuel tank capacity of your car is 17 gallons. Fill the tank with 1/2 capacity or exactly 8.5 gallons. Reinstall the sender with one or two screws and check the reading. If the gauge reading is anything other than 1/2 full, you need to bend the wire arm up or down to get a correct gauge reading. Keep bending the wire in the appropriate direction and reinstall the sender until you get the gauge to register exactly 1/2 full. This system has always worked for me in achieving an accurate fuel gauge reading.

Last edited:
My current sender was not original and looked new. I replaced the original a couple of years ago. It just never worked.

An original '56 fuel tank sensor has heated bi-metal on/off switching contacts not a variable resistor. Those switching contacts limit current flow thru the dash gauge and tank sensor. The dash gauge converts heat into needle movement. Because there is no variable resistor in the tank sensor any comparison of Ohm readings on it may not be relevant. ??
Image 1 below.

An oem '56 gauge and sensor are one-year-only and electrically matched to each other.
Being the first year of 12v they were designed to operate on full 12v. Not using the small dash gauge regulator Ford used beginning in '57.

Aftermarket replacement parts are sometimes one-size-fits-all. Not the best solution in all cases.

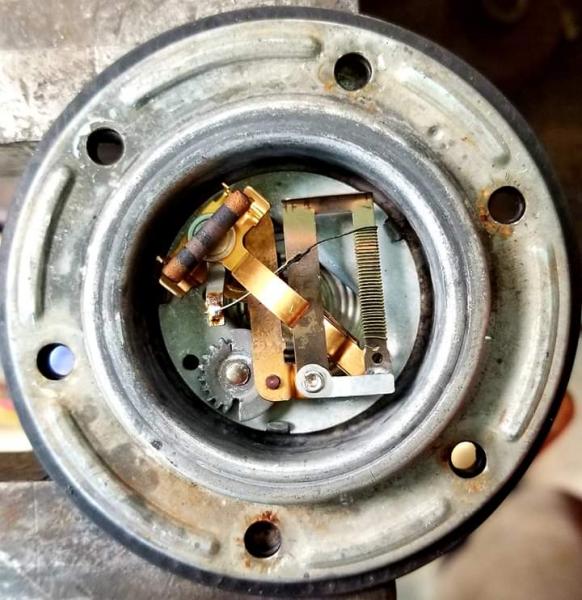

wellcraft17's suggestion to check and clean the (hopefully) original sensor may be something to try. Fyi, there is also a small half circle adjustment wheel inside. On the lower left in image 2 below.
.


Attachments

  • 'King Seeley' fuel gauge '56 sensor diagram, neg ground.jpg
    'King Seeley' fuel gauge '56 sensor diagram, neg ground.jpg
    72 KB · Views: 10
  • fuel sensor, inside.jpg
    fuel sensor, inside.jpg
    62 KB · Views: 21
I tried bending the metal arm as well as the tabs without much luck. I thought with the crazy numbers I was seeing on the Ohm meter, I didn’t have much chance.

CASCO (and maybe others) offer a gauge and compatible sending unit for a 56 (and a 55 if converted the 12V) . Their catalog says gauge looks original. There has been a compatibility problem with the aftermarket senders and an original gauge for quite some time. This may be your solution

HERE IS SOME MISC INFO THAT MAY HELP -​

FUEL GAUGE PROBLEMS -

https://fifthaveinternetgarage.com/tech_tips_gas_gauge.php

CORRECT GRD WIRES -

https://www.ctci.org/the-importance-of-the-correct-engine-to-firewall-ground-cable/

OPERATION of FUEL and COOLANT TEMP GAUGES -

https://www.ctci.org/checking-operation-of-fuel-temp-gauges/

SENDING UNIT REPAIR -

https://www.clocksandgauges.com/gas-tank-sending-unit-repair.html

GAUGE REPAIR -

https://www.clocksandgauges.com/

EDIT - 05 OCT 2026 - ADDITIONAL INFO URLS -

https://forums.fordthunderbirdforum.com/threads/1956-t-bird-correct-fuel-sender-unit.9737/

This must be the update kit as described in a post above -

https://www.larrystbird.com/product/a9280a-fuel-gauge-and-sender-kit/

CASCO -

https://www.classictbird.com/Fuel-Gage/products/59/

1956 FORD-BIRD WSM - SCROLL TO PG 254 -

https://www.scribd.com/document/871837358/1956Ford-ThunderebirdShopManual#page=252

DISCUSSION FROM - y-blocks.forever w/ referring URL within thread -

http://forums.y-blocksforever.com/Topic145549-1.aspx

Last edited:
1956 Ford is a 1 year only gauge and sending unit design (internally they look the same as 1955 and earlier but they are entirely different). Your sending unit should have dual spades and have two stamps on it "KS" and "12v". It's a thermal sending unit with points making and breaking, not a constant wound resistance style modern design. Solvable issue but lots depends upon if you have the original components or not. Same is true for the temperature gauge and sending unit - OEM 1 year only design

PROBLEM SOLVED!

I wanted to summarize the solution that solved my problem with the fuel gauge.

Background: I replaced the original fuel sending unit with one from Concours Parts snd Accessories. This gauge was not accurate ever.

I found a source I was not familiar with from ChatGPT, https://eclassics.com/

The ohm range is 320 Empty - 70 Full. (Significantly different from the one from Concours)

Eclassics.com customer support was quick and helpful.

My gauge now reads an accurate 1/4 tank versus the 3/4 tank the previous unit showed.

So you found a sending unit that actually works with the factory fuel gauge?

Can you give a PN as I see no reference on their site?

zuburg said:
PROBLEM SOLVED!

I wanted to summarize the solution that solved my problem with the fuel gauge.

Background: I replaced the original fuel sending unit with one from Concours Parts snd Accessories. This gauge was not accurate ever.

I found a source I was not familiar with from ChatGPT, https://eclassics.com/

The ohm range is 320 Empty - 70 Full. (Significantly different from the one from Concours)

Eclassics.com customer support was quick and helpful.

My gauge now reads an accurate 1/4 tank versus the 3/4 tank the previous unit showed.
Click to expand...
Perhaps Eclassics OEM: 01A-9275-CUT? :confused:

I'll send an E-MAIL SUN night to them asking for info if zuburg doesn't get back.

Inquiring minds want to know ... :confused:

:cool:

E-MAIL INQUIRY attached below -​


Attachments

  • Screenshot 2026-10-11 at 18-56-44 Contact Us.jpg
    Screenshot 2026-10-11 at 18-56-44 Contact Us.jpg
    15.1 KB · Views: 7
Last edited:
