ford 4cylinder industrial engine

steamgas

steamgas

Senior Member
I am looking for someone to help me gather information on a toro tractor. it has a 4cyl engine, it is a flathead block with the distributor on the front of the engine. Any help would be greatly appreciated.

Probably from a Ford N series tractor or 1941-42 pickup.


Attachments

  • IMG_2019.jpg
    88.3 KB · Views: 141

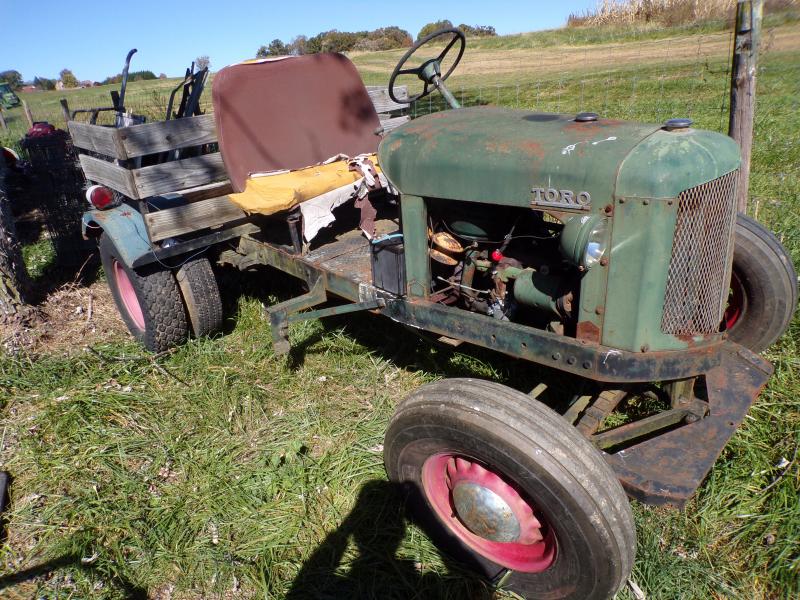

That red engine looks like a Jr version of the more common 6 cyl G. It's very cool. A friend gave me a project Toro about 15 years ago. It had a 4 cyl hercules but the trans looked like a T-9 and it had a ford tonner truck rear. I had to do major work to the cast aluminum grille. Does yours have a dump bed? Mine would go way too fast for a tractor. I too, would love to see some pictures.


Attachments

  • Toro A.jpg
    Toro A.jpg
    78.1 KB · Views: 75
  • Toro B.jpg
    Toro B.jpg
    68.8 KB · Views: 71
I too have always liked those Toros. I have found a few in the wild, but never brought one home yet

It's from a Ford tractor, here is one from my proto-type 1941 Ford GP jeep which is a slight variation of the early 9N, 2N series tractor. Yours "might" be from an 8N or later as the water pump location relative to the head is different from mine AS well as the block looks different at the edge where the intake manifold ends, more squared off than rounded!!


Attachments

  • IMG_3569.jpg
    56.5 KB · Views: 82
  • IMG_3572.jpg
    54.2 KB · Views: 73
  • IMG_3570.jpg
    52.3 KB · Views: 69
Last edited:
steamgas said:
View attachment 553826 here is what i have. Can You give information on it?
Click to expand...
There "might"/"Should" be a serial number stamped on the left side of the block, center, right below where the head meets the block? You might be able to tell more with that number and a couple of the Ford Tractor supply houses like Yesterday;'s or Steiner's maybe???

Thanks, i will take a look tomorrow
here is the numbers i found on the tractor.
tractor #29149 model b general
motor #a.v.9.2.2.5 8n ford industrial 134cid
flathead 4cyl
i would really like to have a good picture of the distributer (straight on view)
if you need more pictures from me just let me know
i need all the help i can get.

Last edited:
If you look close at the old probably no good battery cables, the big hole on the battery end will be positive, small hole negative, where do the wires connect to on the other end?

i am getting ready change the oil in my old toro. it has a rather large oil pan plug.will the oil-pump fall out if i take it out? i don't need any supersizes.

NO, the oil pump in the early tractor 4's was made to bolt onto the front main crank cap. On the later motors I "believe" was moved more to the middle of the crank and bolts to the block??? not as familiar with the later 4's like you have!!! BUT no issues with the "big" oil plug other than a very fast drain of the oil!!! Make sure you have a good drain screen that fits inside that opening.
